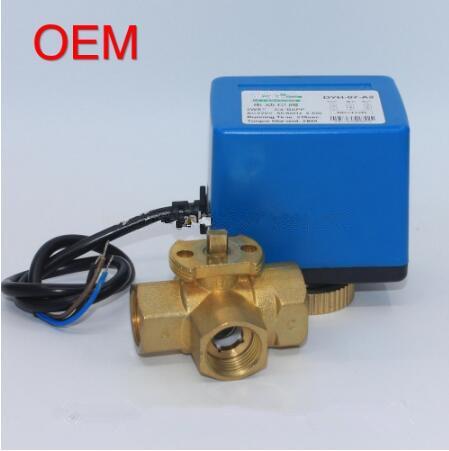

HVAC System Brass Electric Motorized Ball Valve

SQ series ball valve is widely used in central air-conditioning cool/heat water system. It can accurately control the flow of cool/heat medium depending upon the requirements of the given application, and can not result in sudden change of temperature and to control the room temperature accurately.

Features

Smooth flow, no clog

Suitable for any specifications of fan coil unit.

The power is cut off when the valve reaches the on/off position. This ensures long life service for the actuator.

The actuator cover adopts close strcuture which is resistive to humidity and ensures reliable operation for motor.

Models

SQA15 2-way, DN15 (15mm), 3-wire; SQA15-3 3-way, DN15 (15mm), 3-wire

SQA20 2-way, DN20 (20mm), 3-wire; SQA20-3 3-way, DN20 (20mm), 3-wire

SQA25 2-way, DN25 (25mm), 3-wire; SQA25-3 3-way, DN25 (25mm), 3-wire

SQA25 2-way, DN32(32mm), 3-wire;

Technical data

Valve type…………………2-way/3-way ball valve

Pressure class……………..PN16(1.6Mpa)

Supply voltage: 220VAC±15%, 50/60Hz, 110V, 24V

Connection……………………..G(inner thread)

Fluid temperature………….2℃~90℃

Ambient temperature…………....<65 centigrade

Relative humidity………………..max 95%

Valve body…………….Bronze

Opening and closing time……………..16S/50Hz,12S/60Hz

Writing Diagram
