Underfloor heating wall thermostats floor heating thermostat controller

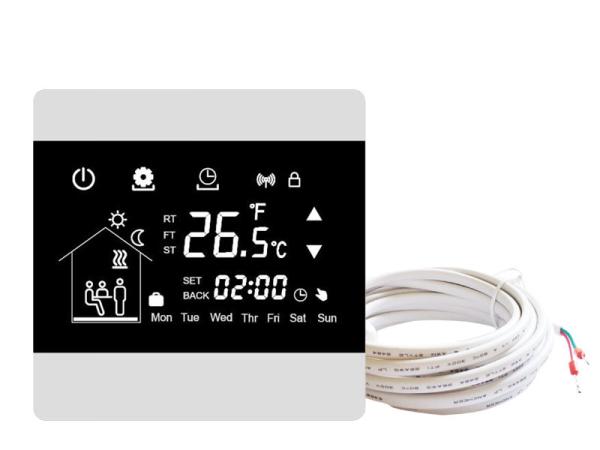

Touch Screen Period Programming Thermostat Weekly circulation, it is possible to set 6 periods called events each day with corresponding pre-set temperatures, also you can select "period control mode" or "manual mode" according to your individual requirements.

The SK82 series Heating room Thermostat has been developed to control electric underfloor . These units are designed for use in commercial, industrial, civil and domestic properties.
Now you don't need to choose between saving money or staying comfortable. The thermostat can help you save up energy costs every year when you use a pre-set heating program schedule. When you use our intuitive mobile app, you can adjust your room thermostat schedule around your life, so you're not needlessly heating an empty home.

Technical data

Advanced setting (qualified person preferred)
You can press "M" and"Time"and hold for 5 seconds at the same time to enter the mode of advanced setting when the thermostat is turned off. The following seven function can be chosen by pressing "M".

Symbol		Setting	Up or Down
1	ADJ	Temperature calibration	Adjust measured temperature
2	SEN	Sensor mode	IN: built-in sensor OUT: floor sensor ALL: both sensors (floor sensor is the limit sensor)
3	LIT	Limitation temperature	Adjust limitation value, Limitation range:5℃~50℃
4	DIF	Switching differential	Adjust switching differential
5	LTP	Antifreeze function	Turn on/off Anti-frozen function
6	PRG	Set vacation mode	2: 5/2 day mode 1: 6/1 day mode 0: 7 day mode
7	RLE	Potential-free output	00: in same way 01: in different way
8	DLY	Potential-free output delay	Change the delay time
9	HIT	Max. Temperature	Max. Limitation temperature set point (99℃)
10	AFAC	Reset to factory settings	Programming parameters will be reset to factory settings when symbol "" appears

Writing Diagram
