Mechanical floor heating room thermostat of HAVC controls products
SK91 is a programmable touch screen thermostat used for 2-position
control with on/off output for the control the temperature by means
of an NTC sensor placed externally or internally in the thermostat.
The thermostat acquires the actual temperature with its built-in
sensor or floor sensor, and the heating contact will close when the
room temperature falls below the selected setpoint.
Application
For the control of warm-water (floor) heating systems and direct
electric heating systems used in Commercial buildings, Residential
buildings, Light industrial buildings, etc.
Specification
Touch screen
7-day programmable
On/off control output for heating device
Symbol indicator when heating is on
Temperature limitation function for protecting the floor
Key-lock function for protecting the setted parameters (especially
suitable for Public Places)
Current room temperature displaying when the thermostat is
switched-off
-Model:UFC004
-4 Wire, Double Pole - 15 Amps
-3600 Watts,110V-120V,or 220-240 Volts
-We also providing electric underfloor heating mats,under floor
cables,heated towel rails etc.
Technical data
| Power Supply | AC200-240VAC 50/60HZ |
| Accuracy | ±0.5ºC |
| Probe sensor | NTC |
| Power Consumption | <0.3W |
| Load current | 3A(water heating),12A/16A(electric heating) |
| Temperature Adjustable Range | 5 ºC - 60 °C |
| Limit Temperature Range | 5-99°C |
| Output | Switch relay |
| Insulating condition | Normal environment |
| Running program | Set per 1 week as a cycle |
| Installation | Wall mounted |
| Application | Water Floor Heating System |
| Electric Floor Heating System |
| Infrared Heater System |
| Certificate | CE,RoHS |

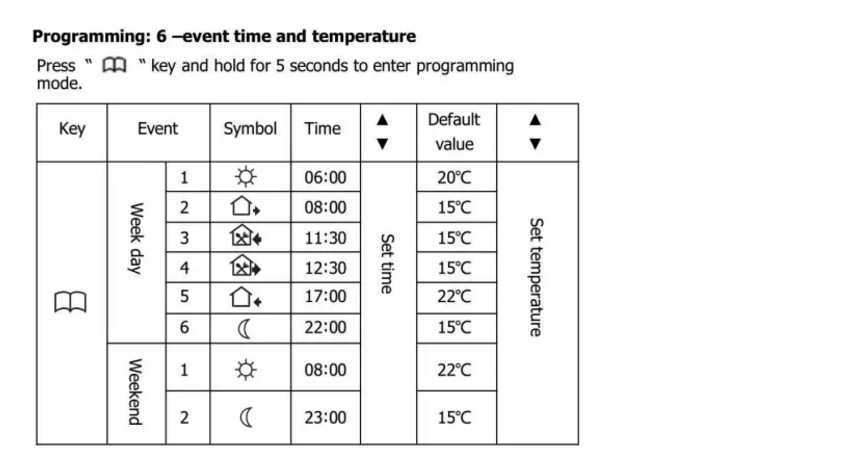

Weekly programming
Dimensions
