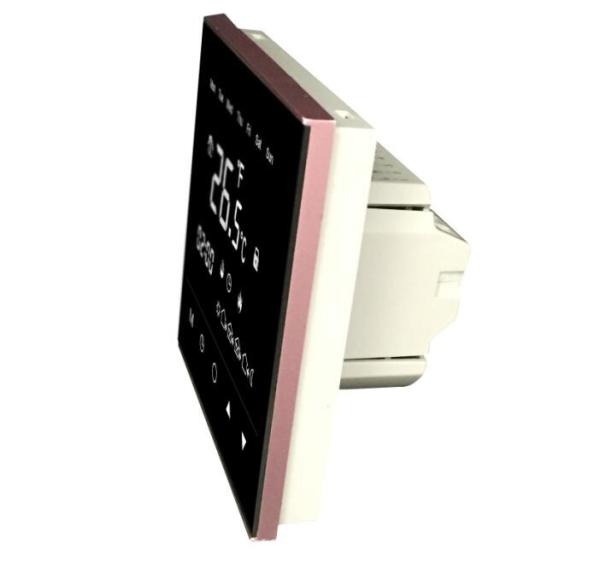

Room Touch Screen Thermostat For Underfloor Heating Systems
Introduction
Weekly circulation digital programming thermostat with LCD screen,
which has 6-event everyday. Manual mode and programme mode could be
selected. The thermostat is recommended for control of electric
heating devices or on/off valve actuator used in hydronic floor
heating.
The SK81 series Heating room Thermostat has been developed to
control electric underfloor . These units are designed for use in
commercial, industrial, civil and domestic properties.
Now you don't need to choose between saving money or staying
comfortable. The thermostat can help you save up energy costs every
year when you use a pre-set heating program schedule. When you use
our intuitive mobile app, you can adjust your room thermostat
schedule around your life, so you're not needlessly heating an
empty home.
Application
For the control of warm-water(floor) heating systems and direct
electric heatings systems used in Commercial buildings, Residential
buildings, Light industrial buildings.
Programming
| Choice of 7 day, 5/2 day programmable; |
| non-programmable (installer selectable); |
| 6 time and 4 temperature settings every day; |
| pre-programmed or personalized schedule; |
| Energy saving up to 33%; |
Display
Large, touchscreen display;
White lighted display for easier low-light viewing;
Larger, easy-to-read character size;
Clean, uncluttered touchscreen display provides
Easier navigation.
Comfort & Convenience
Permanent program retention during power loss;
Setpoint temperature limited range capable;
Enhanced touchscreen security prevents tampering.
Can switch upto 16 amps (230v)
Temperature display resolution: 0.5 C;
A / AF/ F models
Combination of 3 models;
A - Air only, with built-in sensor;
F - Floor only,controls floor temperature;
AF - Controls air temperature with ability to limit the
floor temperature
Specifications
| * Power supply: | 230VAC (120VAC optional) |
| * Inputs: | 2 x NTC10K temperature sensors |
| * Output: | 1 x switch relay(R1),max 3500watts |
| * Operating RH: | 0~95% (non condensing) |
| * Dimensions: | 121mm x 80mm x18mm |
| * Backlight life: | 5,000 hours |
Useful settings
Vacation mode(frost protection mode)
Switching differential setting
Floor temperature limit
Packing details
1pc/inner box, 50pcs/carton
Carton size: 51x22x36cm
