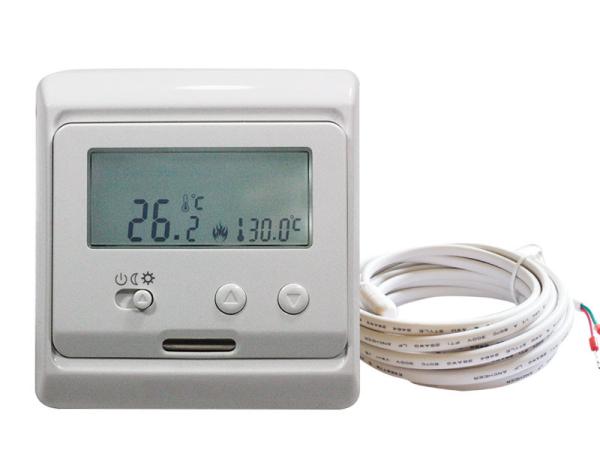

Easy Heated Floor Digital Heating Temperature Control Electric Heating Thermostat

Heating thermostat with LCD screen, which has manual mode and energy saving mode. The thermostat is recommended for the control of electric heating device or on/off valve actuator in hydronic underfloor heating.

Technical data

Voltage: 220V-240V

Power Consumption: 2W

Setting Range: 5-35℃(Can adjust to 5-90℃)

External limitation: 5...60℃(Factory setting: 35℃)

Sensor: NTC internal/external sensor

Switch differential: 0.5-10 ℃adjustable (Factory setting: ±1℃)

Ambient temperature:-5-50℃

Protection housing: IP20

Housing material: Anti-flammable PC

Package

Individual white box and outer carton, 64pcs in one carton

Dimension:mm

Display symbol

Wiring Diagram

Sensor failure

Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated.
