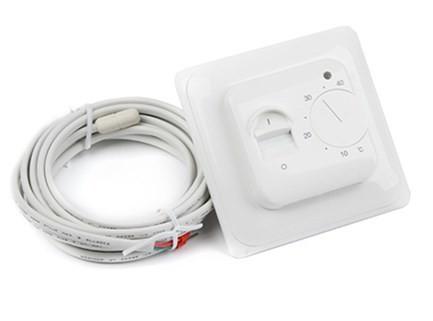

SK20 16A Electrical Heated Floor Room Thermostat
Thermostat characteristic
-Mounted on the surface of the wall indoors
-Temperature control range +5/+40℃
- Applied in the auto-control system of space heating
-LED turned onwhile heating
-Satisfying the requirements of safety, energy saving and comfort
Technique Parameters
Voltage: 220VAC
Power consumption: 5VA
Temperature control range: 5~40 ℃
Temperature limit range: 25~55 ℃
Power save mode temperature: 5℃
Temperature deviation: ±0.5K
Ambient temperature: -5~50℃
Degree of protection provided by enclosure: IP20
Outer sensor: length of cable 3m
Calibrating:
When indoor temperature reaches steady state, user could calibrate
the heating thermostat to make the temperature reading be the same
as the real room temperature.
Calibrate Operation Procedures:
a) Measure the temperature with thermometer;
b) Remove the control knob;
c) Rotate theadjuster bar D (shown in Fig.2) until theLED is turned
off;
d) Install the control knob and make the temperature reading bethe
same as thereal temperature.
Warning:Please do not rotate the control knob since the
factory default has been calibrated !
Restriction of Control Knob Adjusting Range:
The lock mechanism under the controlknob can be used to restrict
the adjusting temperature range. User can lock the adjusting range
(e.g.20-25℃) as long as loosing the screw C (shown in Fig.2). The
top adjusting ring can restrict themaximal temperature, and the
under one can restrict the minimal temperature.
Package
Individual white box and outer carton, 64pcs in one carton
