Underfloor Electric Heating Devices Weekly Circulation Digital Programming LCD Screen Thermostat

Introduction

Weekly circulation digital programming thermostat with LCD screen, which has 6-event everyday. Manual mode and programme mode could be selected. The thermostat is recommended for control of electric heating devices or on/off valve actuator used in hydronic floor heating.

Application

For the control of warm-water(floor) heating systems and direct electric heatings systems used in Commercial buildings, Residential buildings, Light industrial buildings...

Technical data

Voltage: 220V/230V

Power Consumption: 2W

Setting Range: 5-90℃(Can adjust to 35-90℃)

External limitation: 5...60℃(Factory setting: 35℃)

Switch differential: 0.5-10℃ adjustable(Factory setting: ± 1 ℃)

Ambient temperature: -5-50℃

Protection class: IP20

Housing material: Anti-flammable PC

Sensor Failure:

E0:Built-in sensor short-circuited or disconnected.

E1:Exernal sensor short-circuited or disconnected.

When shows E0/E1 error, thermostat must be checked till the error is eliminated.

Packaging & Delivery

Packaging Details :carton

Delivery Time:15 days after paid

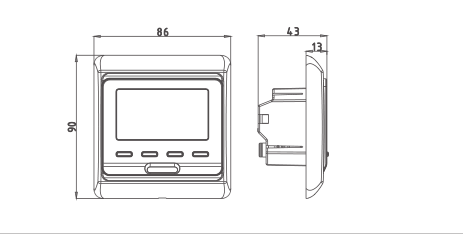

Dimensions:mm

Weekly Programming
