Floor Heating System Black Large Touch Screen Thermostat OEM/ODM
The SK81 series Touch Screen Thermostat has been developed to
control electric underfloor . These units are designed for use in
commercial, industrial, civil and domestic properties.
Now you don't need to choose between saving money or staying
comfortable. The thermostat can help you save up energy costs every
year when you use a pre-set heating program schedule. When you use
our intuitive mobile app, you can adjust your room thermostat
schedule around your life, so you're not needlessly heating an
empty home.
Application
For the control of warm-water(floor) heating systems and direct
electric heatings systems used in Commercial buildings, Residential
buildings, Light industrial buildings.

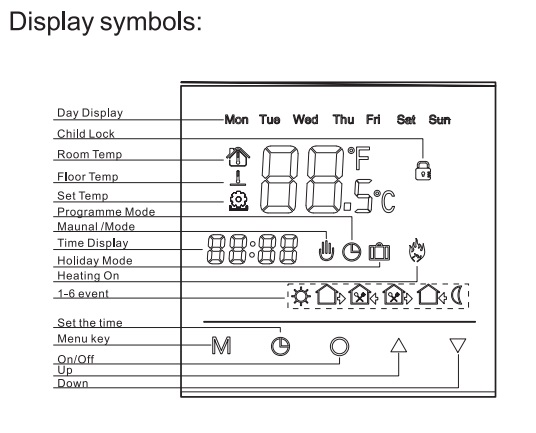

Display
| Large, touchscreen display; |
| European standard installation box; |
| White lighted display for easier low-light viewing; |
| Comfort & Convenience; |
| Intuitive menu-driven set-up, programming and operation; |
| Permanent program retention during power loss; |
| Setpoint temperature limited range capable; |
| Enhanced touchscreen security prevents tampering; |
| Can switch upto 16 amps (230v); |
| Temperature display resolution: 0.5 C; |
Specifications
| Power supply: | 230VAC (120VAC optional) |
| Inputs: | 2 x NTC10K temperature sensors |
| Output: | 1 x switch relay(R1),max 3500watts |
| Operating RH: | 0~95% (non condensing) |
| Dimensions: | 121mm x 80mm x18mm |
| Backlight life: | 5,000 hours |
A / AF/ F models all in one
| Combination of 3 models; |
| A - Air only, with built-in sensor; |
| F - Floor only,controls floor temperature; |
| AF - Controls air temperature with ability to limit the floor temperature; |
| Each thermostat is equipped with built-in sensor and a 3 meter
floor sensor; |
Company information
SAIKO is a thermostat ＆ valve design and manufacturing factory
located in Nanjing City, which is very famous as the ancient
capital of six dynasties in Jiangsu Province, China.
We devote ourselves to R&D, production, sale and marketing of
our energy saving products. Our core business is central
air-conditioning &radiant floor heating, Z-wave Smart Home
Products, Central vacuums and ventilation products.We provide
control solutions with low cost,product customizing and continuous
improvement.
We acquired the “CE certification” for all products. By carefully
choosing qualified suppliers and making use of a convenient
logistic network, we can ensure to carry out all orders on time
combined with highest possible amount of accuracy,including our
abroad market.
Our goal is to provide our clients with exceptional service and
listen to our client need and provide them with the satisfied
solution and services.
