General:
The manual heating thermostat is designed for electronic floor
heating and other electrical heating elements. The thermostat gets
the room temperature through its floor sensor, and the heating
contact will close when the room temperature rises above the set
point, and vice versa.
Features:
• Basic functions: heating modes
• Optional functions: with or without power suitch,working
indicator light;switch between refrigeration/heating modes
• Working range: 0ºC-40ºC
• Tempering accuracy: ± 0.5ºC
• Temperature-sensing element: adopts precise metal bellows
• Electric equipment parameters: thermostat 16A 220VAC±10%,50/60HZ
Placement of thermostat:
Thermostat is to be mounted on the wall with free air circulation
around it . Furthermore it has to be placed where it is not
influenced by any other heating sources (e.g. the sun), draft from
doors or windows, or by the temperature of an exterior wall.
Temperature and Value of floor sensor:
| Temperature(℃) | Value(Ω) |
| 5 | 22070 |
| 10 | 17960 |
| 20 | 12091 |
| 30 | 8312 |
| 40 | 5827 |
Size:
Wiring diagram:
Operation manual:
Selection table:
| Model | Current | Sensor | Application |
| SK20A | 16A | built-in sensor | for control of electric heating devices |
| SK20F | 16A | floor sensor | for control of electric heating devices |
Max./Min. Temperature Setting
A locking mechanism is positioned behind the control knob to limit
the amount of adjustment possible. By loosening the little screw C
(picture2)the scale range can be locked, e.g. Between 20 and 25 .
The above ring indicates the maximum temperature and the below ring
indicates the minimum temperature.

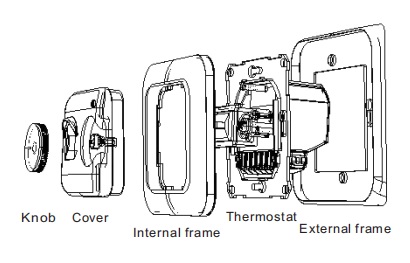

Parts:
